| Product Series |
Product No. |
Elastomer |
Density ASTM1056（KG/M³) |
Hardness Shore C |
Tensile Strength ISO1798-97(Kpa） |
Elongation ISO1798-97（%） |
Compression Deflection 25%（Kpa） | Temperature Range (℃） |
Flammability |
Maxium Block Size T*W*L (mm*mm*mm) |
| EPDM Open Cell |
SF-1000 | EPDM | 90±30 | / | ≥100 | ≥180 | ≤4 | -50～+120 | FMVSS302 | 30*1000*10000 |
| SF-1000N | EPDM | 90±30 | / | ≥100 | ≥180 | ≤4 | -50～+120 | UL94HF-1 | 30*1000*10000 | |
| SF-1208 | EPDM | 80±20 | / | ≥100 | ≥150 | ≤4 | -50～+120 | FMVSS302 | 30*1000*10000 | |
| SF-1208N | EPDM | 80±20 | / | ≥100 | ≥150 | ≤4 | -50～+120 | UL94HF-1 | 30*1000*10000 | |
| EPDM Closed Cell |
SF-3075 | EPDM | 75±15 | 24±10 | ≥300 | 1.25 | 20-40 | -50～+120 | FMVSS302 | 50*1220*2032 |
| SF-3021 | EPDM | 100±30 | 30±10 | ≥200 | ≥125 | 15-35 | -50～+100 | FMVSS302 | 70*1000*2000 | |
| SF-3025 | EPDM | 130±30 | 35±10 | ≥400 | ≥150 | 25-45 | -50～+105 | FMVSS302 | 50*1000*2000 | |
| SF-3031 | EPDM | 130±30 | 35±10 | ≥250 | ≥100 | 15-35 | -50～+105 | FMVSS302 | 70*1000*2000 | |
| SF-3052 | EPDM | 165±30 | 45±10 | ≥350 | ≥150 | 35-65 | -57～+121 | FMVSS302 | 65*1000*2000 | |
| SF-3008 | EPDM | 80±10 | 25±10 | ≥150 | ≥180 | 5-25 | -50～+125 | FMVSS302 | 30*1000*10000 | |
| SF-3008N | EPDM | 80±10 | 30±10 | ≥150 | ≥150 | 5-25 | -50～+125 | UL94HF-1 | 30*1000*10000 | |
| CE/EPDM Closed Cell |
SF-5013 | CR/EPDM/SBR | 144±32 | 60±5 | ≥600 | ≥125 | 75±15 | -40～+93 | UL94HF-1 | 51*1067*1830 |
| SF-5031 | CR/EPDM/SBR | 96±16 | 50±10 | ≥500 | ≥125 | 24±16 | -40～+93 | UL94HF-1 | 63*1016*2032 | |
| SF-5032 | CR/EPDM/SBR | 96±16 | 45±10 | ≥500 | ≥125 | 48±16 | -40～+93 | UL94HF-1 | 63*1016*2032 | |
| SF-5141 | CR/EPDM | 120±30 | 35±10 | ≥200 | ≥125 | 25±10 | -40～+93 | FMVSS302 | 63*1000*1600 |
The above data is the reference value.If you have specific need,please consult our technical department.
 |
 |
 |

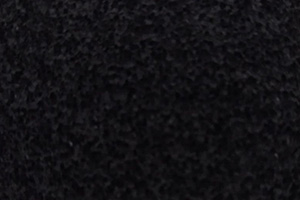

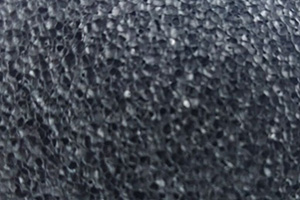

SF-1000 |

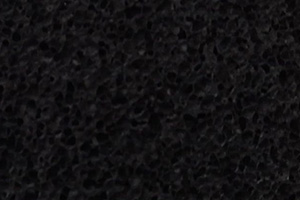

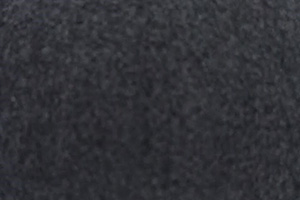

SF-1000N |

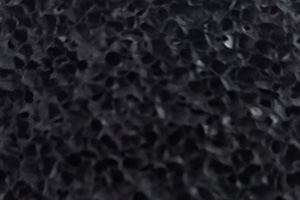

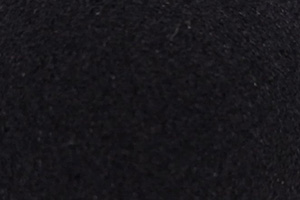

SF-1208 |
|
 |
 |

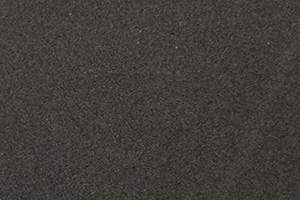

SF-1208N |

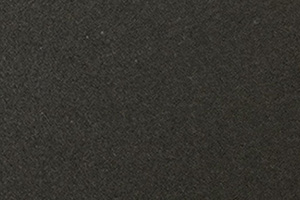

SF-3075 |

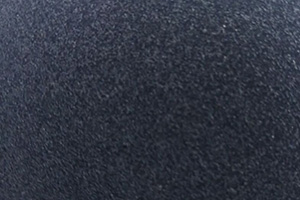

SF-3021 |
 |
 |
 |

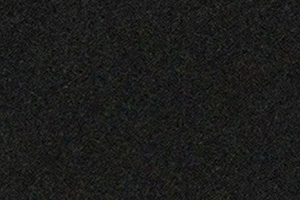

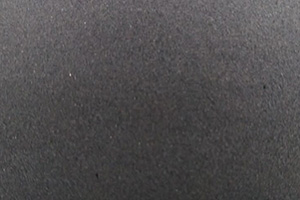

| SF-3025 | SF-3031 | SF-3052 |
 |
 |
 |
| SF-3008 | SF-3008N | SF-5013 |
 |
 |
 |
| SF-5031 | SF-5032 | SF-5141 |
